Drilling Template for Handles & Knobs
Drilling Template for Handles & Knobs
Drilling Template for Handles & Knobs
Drilling Template for Handles & Knobs
Beslag Design

Drilling Template for Handles & Knobs

Add to cart
Hard to decide?
Order your favorites and test which products fit best. You always have 60 days to return your products.
    • Description

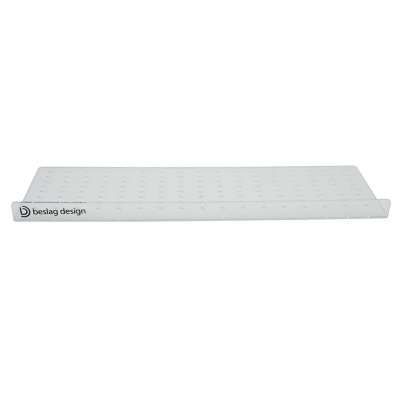

    • The drilling template is designed to facilitate the assembly of knobs and handles. The template is easy to use and helps you drill in the right place to get the same distance on each cabinet door and drawer front—an easy way to ensure perfect placement and assembly.

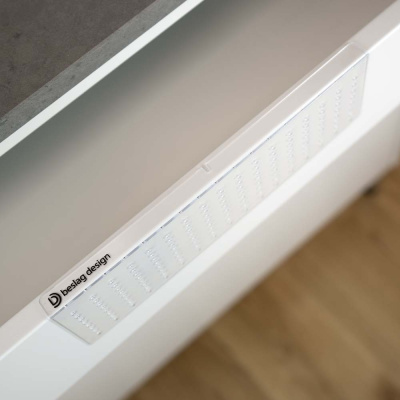

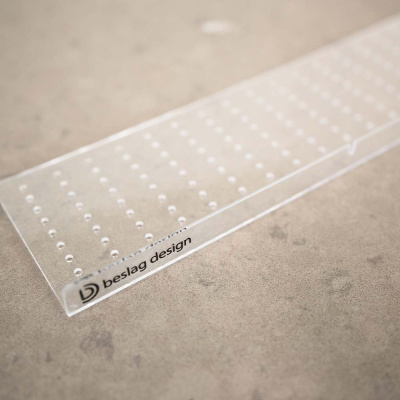

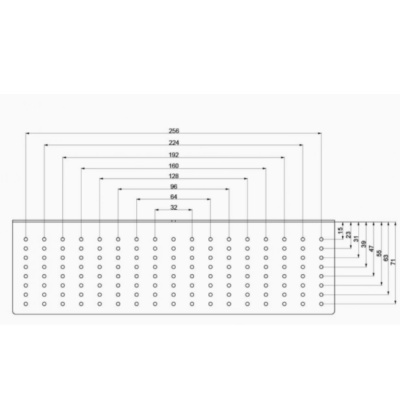

      The drill template has a notch in the middle to facilitate placement on the box or door; the drill template is designed to be hung on the box or door. There are eight holes in height and seventeen holes in length, the middle row is mainly intended for placing knobs, and there are eight different c/c dimensions. 256mm is the longest, and the smallest is 32mm. The holes in the template have a diameter of 3 millimeters.

      All of our handles come with M4 screws, the head of the screw is 8mm, and the threaded part is 4mm. We, therefore, recommend using a drill that is 4mm.

      Do as follows:
      1. Measure or check on our website which c / c measure your handle has.
      2. Measure the drawer or door where you want to place the handle or knob to get the center out. Feel free to use a piece of tape to mark on to avoid unnecessary marks.

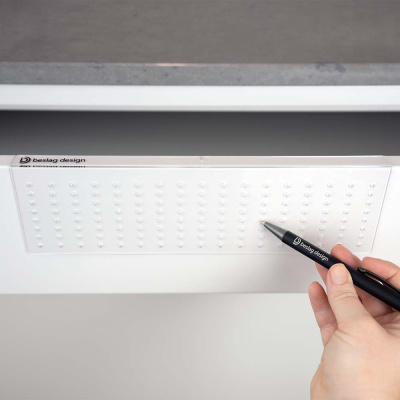

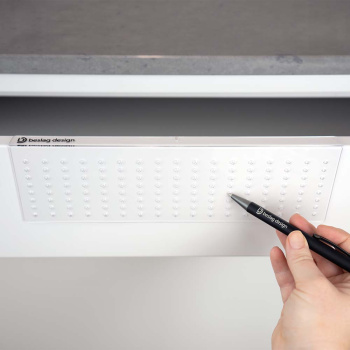

      3. Hang on the drill template and mark the holes with a pencil. A tip is to have a piece of tape behind here, both to avoid markings and to get as perfect a hole as possible and avoid chips.
      4. Drill holes.
      5. Mount your new handles with the included M4 screw.
    • Dimensions & assembly
    • Article nr: T01100-21
      Length: 279 mm
      Width: 81,5 mm
      Depth: 17 mm
      Style: Classic, Modern
      Brand: Beslag Design

      Installation of handles
      Mount the handle with the included screws on the desired drawer, door, or piece of furniture using a manual screwdriver.


      The distance between the screw holes is called C/C measurement and stands for center to center, it is always written in millimeters. You can easily obtain your existing C/C measurement by measuring the distance between the centers of the screw holes.
    • More info & care advice

    • Brand - Beslag Design
      Beslag Online is part of Beslag Design, which has more than 50 years of experience in the areas of fittings and interior products. Beslag Design started its journey in 1972 and today has Sweden's widest range of handles and knobs for both kitchens, bathrooms, wardrobes and furniture. With over 1,000 different models to choose from, there really is something for every style. Beslag Design are known for their high quality and breadth of range that captures the latest trends.
      "Details that make the whole"

      Care advice

      Wipe with a clean slightly damp cloth. Avoid detergents as they may contain chemicals that affect the surface negatively. Can also be cleaned with a microfiber cloth.
