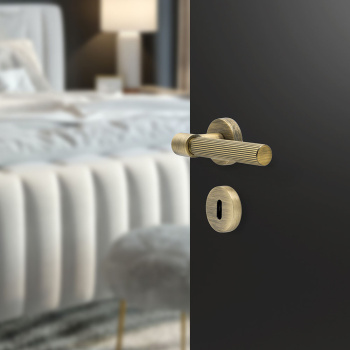

Door Handle Helix 200 Stripe - Antique Bronze

Available varieties
Door Handle Helix 200 Stripe - Black/bilder/artiklar/liten/dht-stripe-svart_S.jpg?m=1637314902
Door Handle Helix 200 Stripe - Brass/bilder/artiklar/liten/dht-stripe-massing_S.jpg?m=1637314986
Door Handle Helix 200 Stripe - Dark Bronze/bilder/artiklar/liten/752014-41-V_S.jpg?m=1729511866
Door Handle Helix 200 Stripe - Stainless Steel Finish/bilder/artiklar/liten/dht-stripe-rostfritt_S.jpg?m=1637315045
88 - £123
Select Model
European Standard Modular Lock (Lock case 565) Scandinavian Standard (Lock case 2014)

SINGLES

WEEKEND

RIGHT NOW! SINGLES WEEKEND

20% OFF EVERYTHING*
Free delivery over £49 60days open buy

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:

Buy together with

20
Door Stop Helix Stripe - Antique Bronze
Door Stop Helix Stripe - Antique Bronze
Available in several designs
£22.40 £28
Buy now
Info
20
Handle Buffer - Black 3pc
Handle Buffer - Black 3pc
Handle Buffer - Black 3pc
£3.52 £4.40
Buy now
Info
20
POPULAR
Toilet Lock R - Antique Bronze
Toilet Lock R - Antique Bronze
Toilet Lock R - Antique Bronze
Available in several designs
£28.80 £36
Description

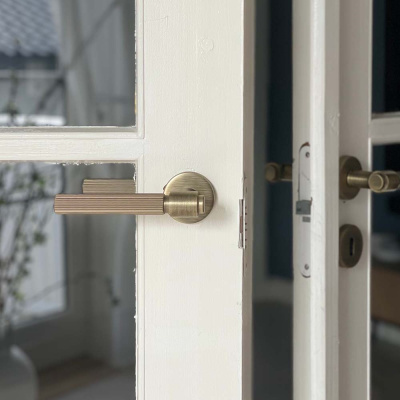

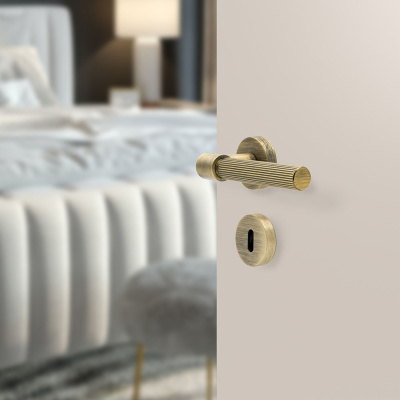

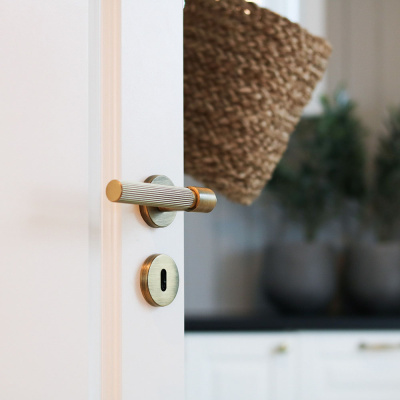

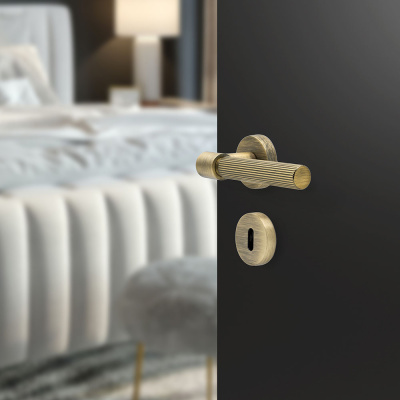

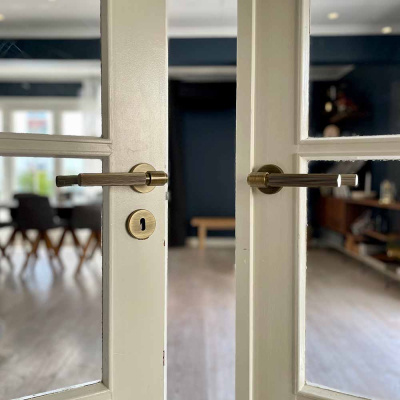

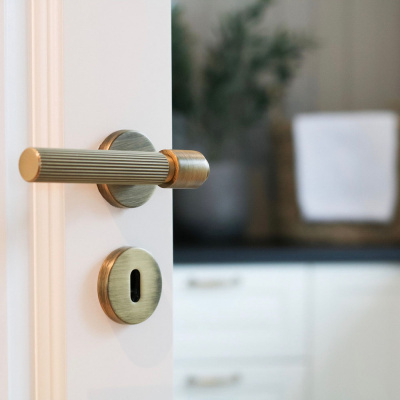

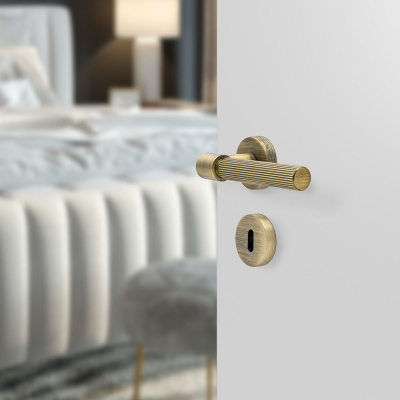

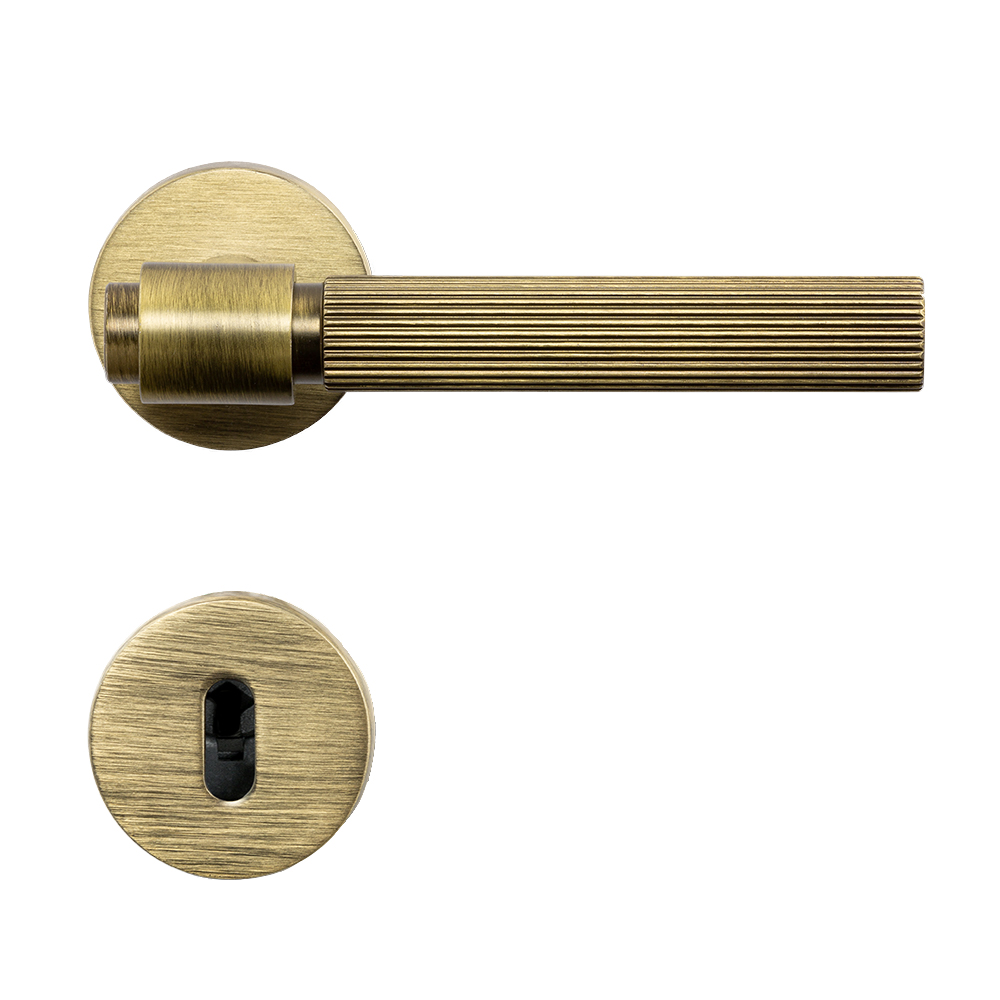

Door handle Helix Stripe in antique bronze has a ribbed surface with stripes that stand out with an industrial design. The door handle has a resilient spring, which means that the handle always returns to its basic position. Perfect for all doors indoors. Feel free to match the door handle with a door stop or kitchen handle in the same series to get a whole in the interior of the home.

The handle is available in four different designs; antique bronze, matte black, brass and stainless steel finish.

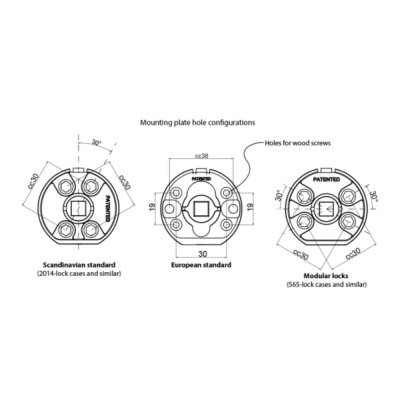

The door handle Helix fits different lock boxes, choose between Scandinavian standard, European standard or modular lock that provides doors with lock case 565 or equivalent. Our door handles for modular locks fit a door leaf thickness of 35-55mm.

Scandinavian standard (lock case 2014 or similar) and European standard fit doors that have a door leaf thickness of 35-48mm. Standard key plate, conversion kit, and complete mounting kit are included.

All our door handles are delivered in pairs complete for one door.

Scandinavian standard: Sweden, Denmark, Norway, Finland.
European standard: other countries in Europe. (c/c 38mm)

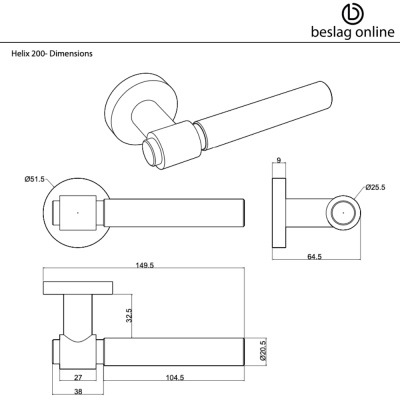

Dimensions & assembly
Article nr: dht-stripe-antik
Diameter Ø: 52 mm
Length: 150 mm
Width: 52 mm
Depth: 65 mm
Material: Aluminum
Finish: Antique Bronze
Model: Door Handle
Style: Modern
Screws included: Complete with mounting kit
Brand: Beslag Design

Installation of door handles
Install the door handle using the included mounting kit.



1. Center the square bar in the lock.
2. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down towards the floor. Then screw them in with the included screw and sleeve.
3. Take out the square rod and use it as a tool to pry out the guide washers that sit in the center of the mounting washers.
4. Place the square bar in the lock, center it and check that the milled groove in the square bar is horizontal. Then press the handle firmly so that it clicks into the tab on the top of the mounting washers.
5. Screw in the stop screws using an insect wrench and finish by tightening them. A total of four.
6. Now your door handles are mounted and ready to use.

Installation of key plate
Install the key plate using the included mounting kit.





1. Place the mounting washers on the square bar, making sure that the flat parts of the mounting washers are positioned down against the floor. Then screw them in with the included screw and sleeve.
2. Then press the key plate firmly so that it clicks into the tab on the top of the mounting washers.
3. Screw in the stop screws using an insect wrench and finish by tightening them. One screw on each side of the door.



More info & care advice

More info
The product is made of aluminum and has received a surface treatment that gives the product an antique bronze finish. The product will not patina and the product will retain its luster and color over time.

Brand - Beslag Design
Beslag Online is part of Beslag Design, which has more than 50 years of experience in the areas of fittings and interior products. Beslag Design started its journey in 1972 and today has Sweden's widest range of handles and knobs for both kitchens, bathrooms, wardrobes and furniture. With over 1,000 different models to choose from, there really is something for every style. Beslag Design are known for their high quality and breadth of range that captures the latest trends.
"Details that make the whole"

Care advice

Wipe with a clean slightly damp cloth. Avoid detergents as they may contain chemicals that affect the surface negatively. Can also be cleaned with a microfiber cloth.
Reviews
Delivery & return

Delivery information

Delivery to service point - UPS £4.61
Free shipping on all orders over £49
Delivery 3-5 days on stock items

Home delivery - UPS £9.78
Delivery 3-5 days on stock items

Please note that the delivery time is based on the products you have ordered, on our website, an approximate delivery time is shown for each product. This is the delivery time that applies unless otherwise stated.

Return information
Beslag Online offers a right of withdrawal for 60 days, valid from the day you received your goods. The goods need to be returned in an unchanged condition in order for you as a customer to receive full credit. We do not offer any free returns as part of our environmental thinking, there is a return fee of £5.
